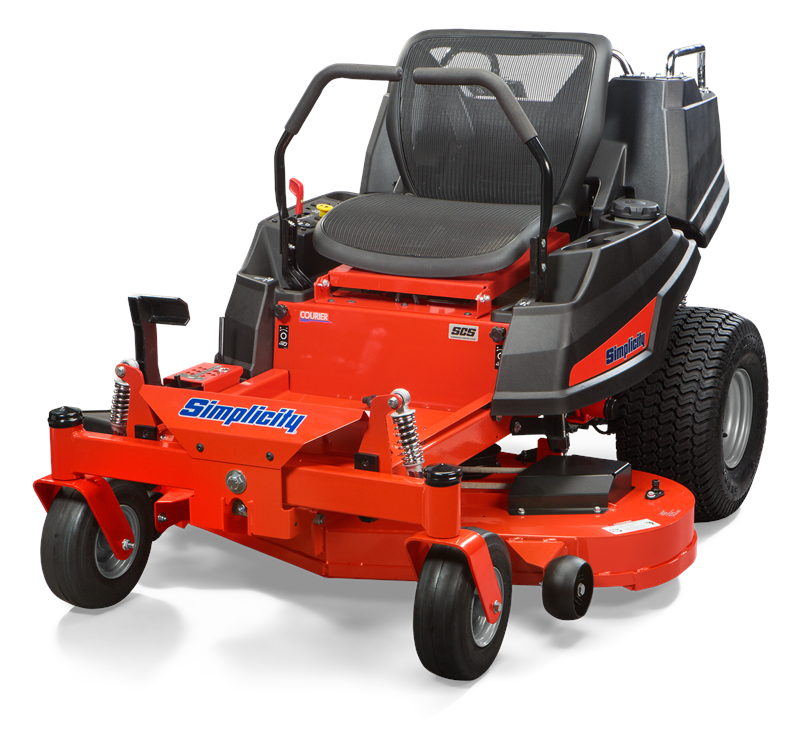

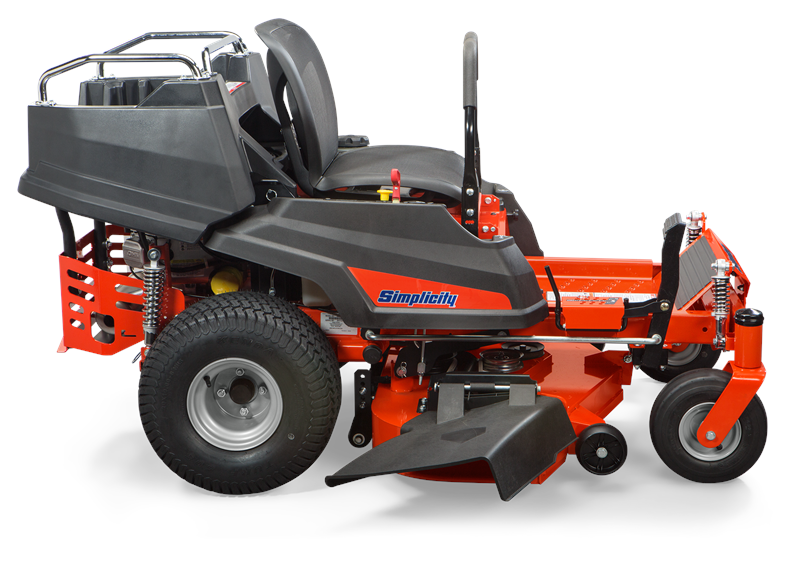

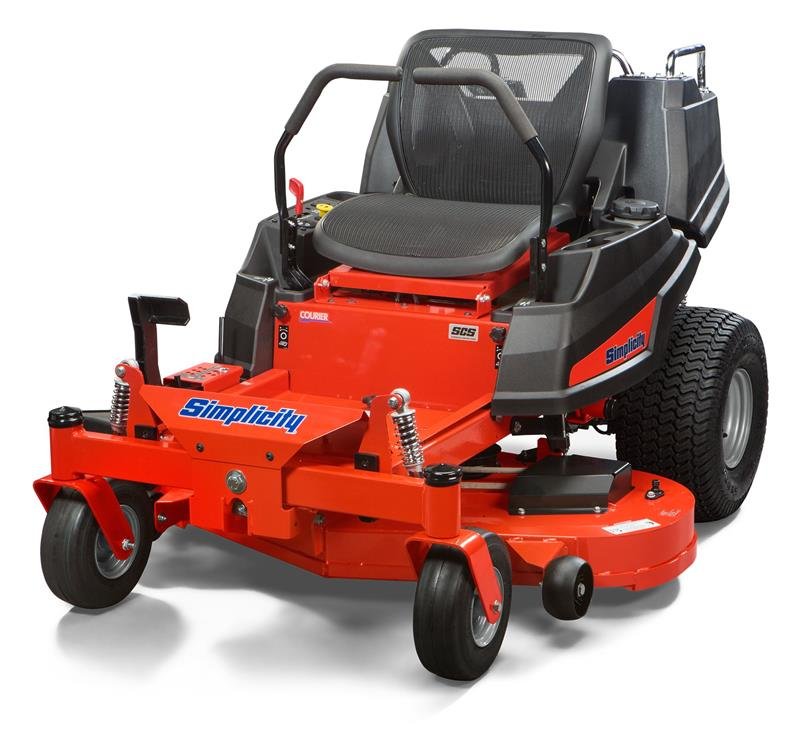

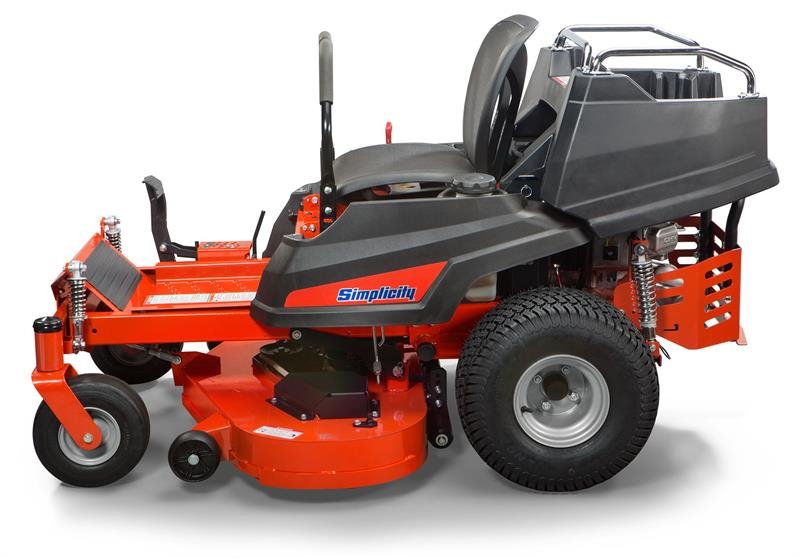

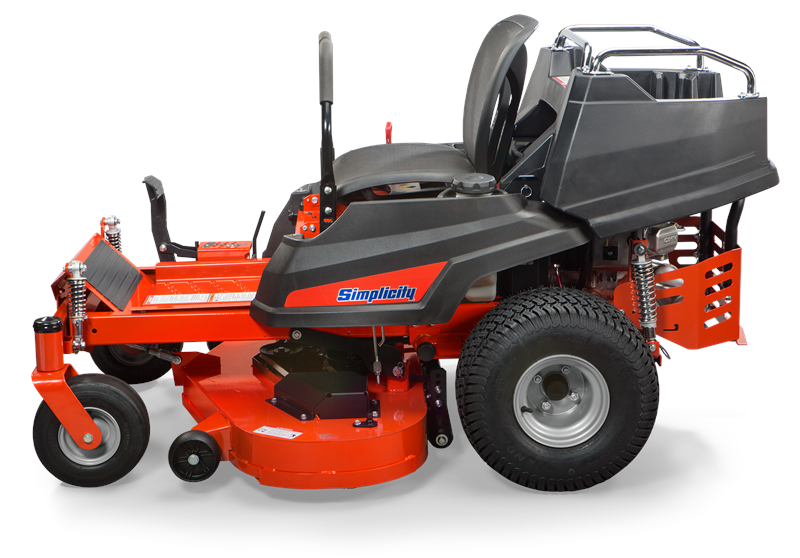

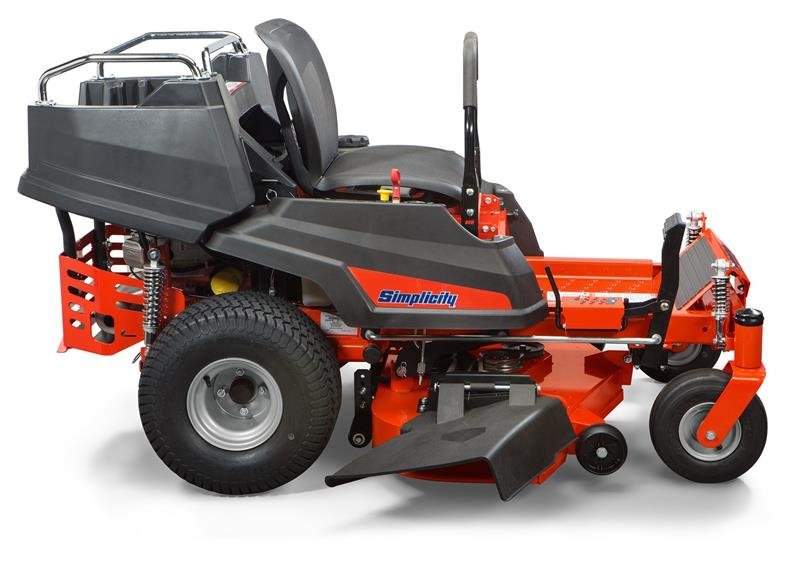

Courier™ Zero Turn Mower
COMPACT COMFORT & VERSATILITY
Simplicity’s entry-level zero turn is anything but basic. The Courier offers the performance and premium features to make quick work of your lawn. With a wide variety of deck sizes starting at 36 inches, there is a Courier for any property. Add the optional integrated cargo bed and the Courier transforms into a versatile yard workhorse.
FEATURES
- COMMERCIALLY-INSPIRED DESIGN
A fully-welded steel frame, thick-walled pivoting front axle, durable mower deck and ball bearings in the castor spindles ensure durability and a quality cut for years to come. Plus, an integrated parking brake adds even more convenience and ease-of-use. - MORE THAN JUST A ZERO TURN MOWER

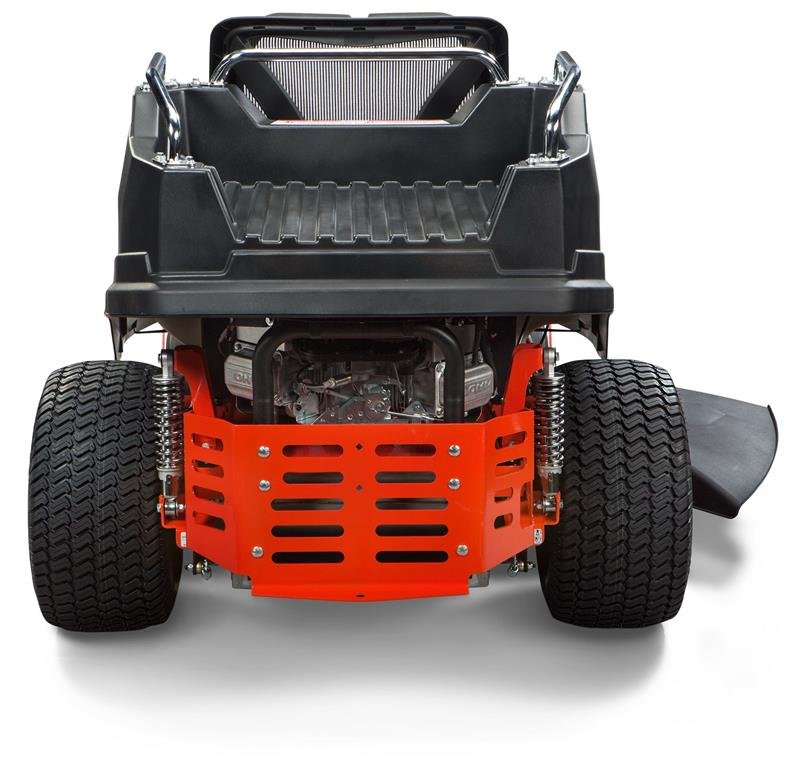

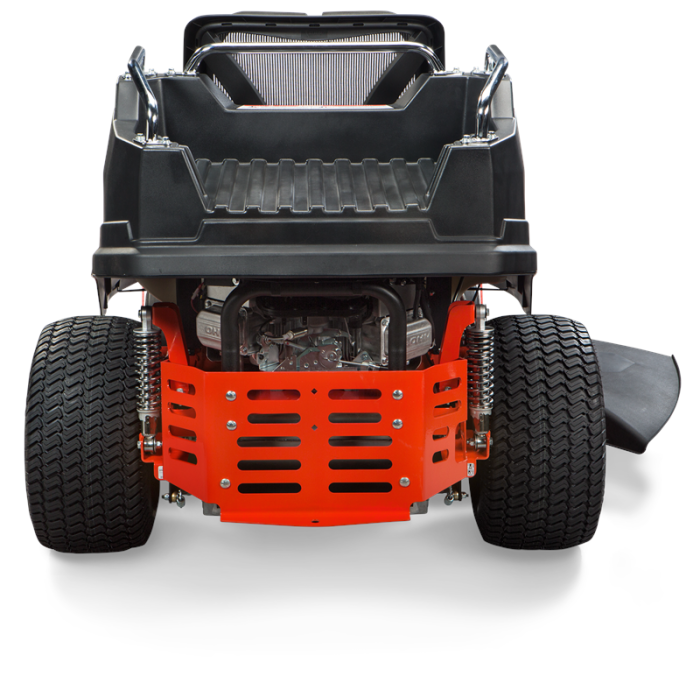

Though it offers a great quality of cut, the integrated rear cargo bed+ along with its other great features make the Courier™ a versatile workhorse in a category of its own. - FOOT-OPERATED HEIGHT-OF-CUT
Easily adjust between 13 different height-of-cut positions from 1.5 to 4.5 inches. - SUSPENSION COMFORT SYSTEM™
The exclusive Suspension Comfort System™ (select models) complete with front or front & rear suspension allows you to feel 25% less impact while operating, resulting in enhanced comfort versus a non-suspension zero turn mower. Plus, an ergonomic mesh seat keeps you cool and comfortable. Note: Results of suspension depend on grass/yard conditions.
Model
2691659
Marketing Model
23/48
Engine Brand
Briggs & Stratton®
Engine Model
PXi Series™
Start Type
Electric, Key
Power Rating *
23
Cylinders
2
Choke/Throttle
ReadyStart®, Single Lever
Engine Displacement (cc)
724
Fuel Tank Capacity (gal)
3
Battery (cca)
230
Transmission Type
Hydro-Gear® EZT®
Ground Speed-Fwd (mph)
0 – 7
Ground Speed-Rev (mph)
0 – 4
Brake
Cog Style
Frame
12-Gauge Steel
Front Tires (in)
11 x 6-5 / 4-Ply Smooth
Front Axle
Steel Pivoting
Rear Tires (in)
20 x 10 – 8 / Turf
Seat
15″ Mesh
Suspension
SCS, Front & Rear
Cutting Width (in)
48
Mower Deck Type
Fabricated
Height-of-Cut (in)
1.5-4.5
Height-of-Cut Positions
13
Number of Blades
3
Mower Deck Removal
Frame Mounted
Anti-Scalp Wheels
2-Front
Spindle
Aluminum w/ Grease Zerk
Cargo Bed +
Standard
Steering
Twin-Levers
Headlights
Optional
Cup Holder
Standard, 2
Bumper
Steel
Roll Over Protection (ROPS)
N/A
Assembled Width (in)
59
Assembled Height (in)
42
Assembled Length (in)
72
Consumer Warranty (Product) **
3-Years
Commercial Warranty (Product) **
90-Days
Fabricated Mower Deck Warranty **
Lifetime
Blade Type
Electric PTO Switch
Fuel Gauge Location
Standard Gauge / On Fuel Tank
Rear Fenders
Standard, Steel Rear
