Pacific Laser Systems 5022496 Description

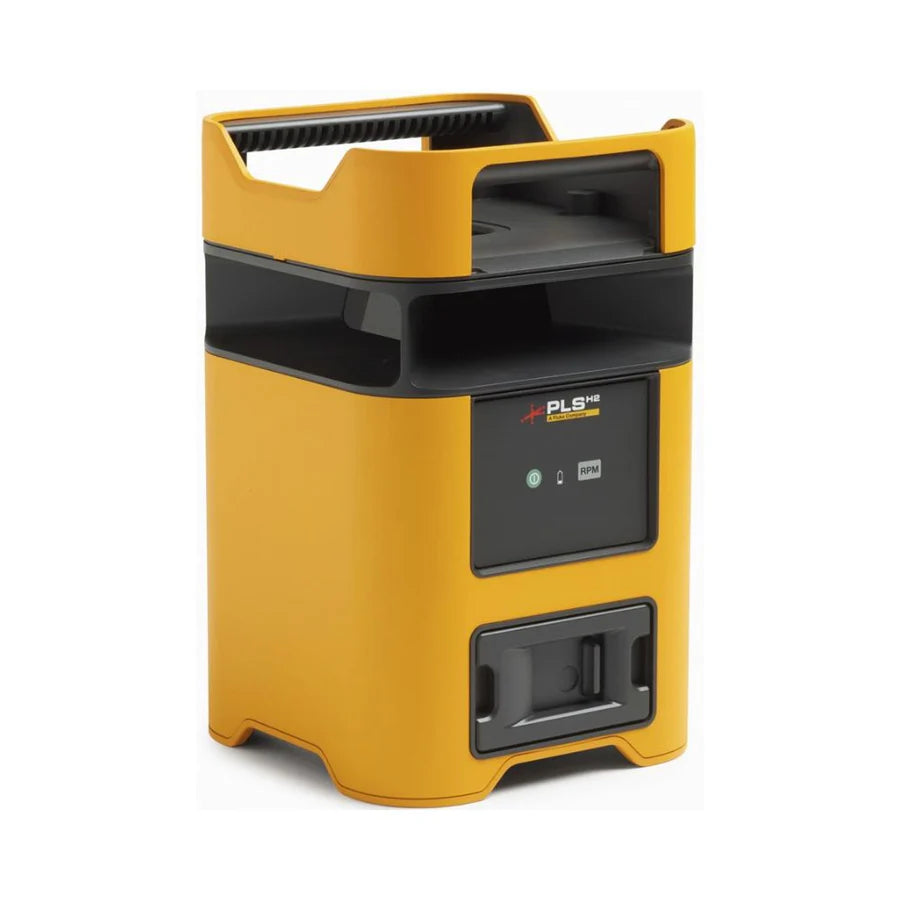

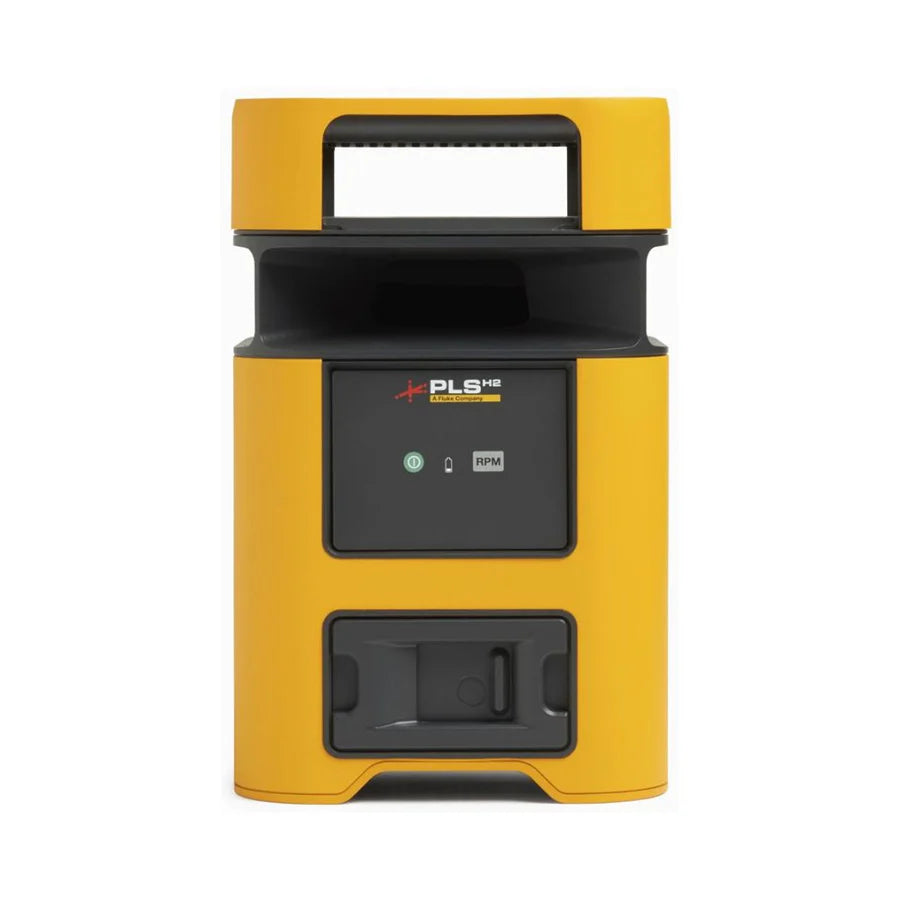

The PLS H2 Kit is a red horizontal-only rotary laser level for level alignment packaged for individual sale in the PLS C19 rotary laser case and printed cardboard box.

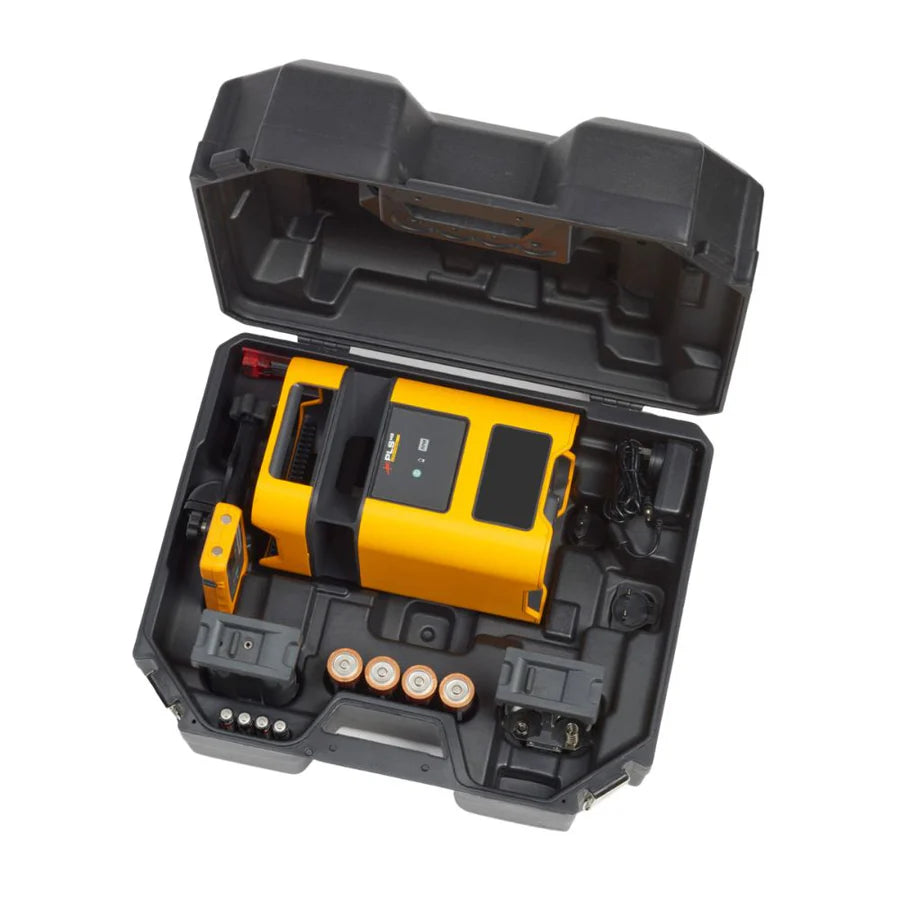

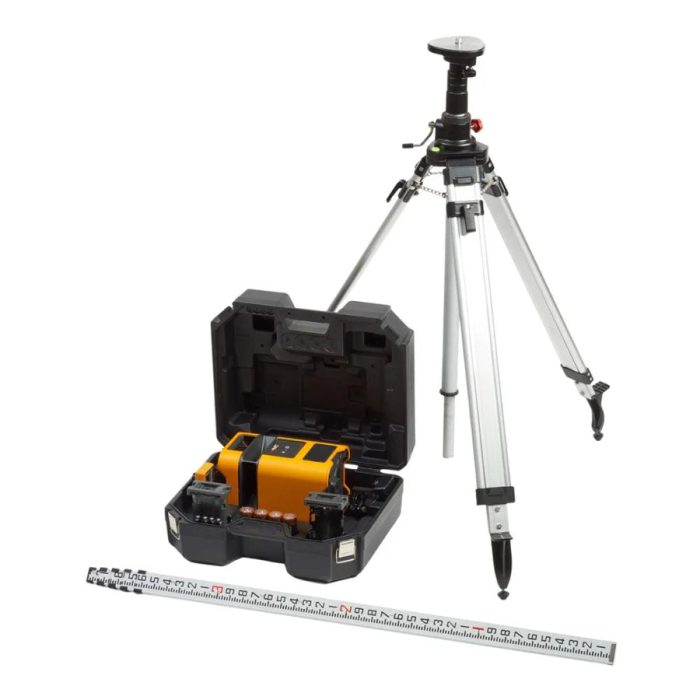

Pacific Laser Systems 5022496 Includes
- (1) PLS H2 Rotary laser level
- (1) PLS BP10 Alkaline Battery Tray
- (4) D Batteries
- (1) PLS RBP10 NiMH Battery Tray
- (1) PLS XLD Detector with Clamp
- (1) PLS RRT4 Reflective Target
- (1) PLS C19 Carrying Case
- (1) Quick Reference Guide
- (1) Safety Documentation
Pacific Laser Systems 5022496 Features
- Red Horizontal Rotary Laser Level
- Class II Red Laser
- Self-leveling within ±5 degrees
- One-Button Operation
- Alkaline and NiMH Battery Trays
Â
| Rotary levels | PLS H2 | ||
|---|---|---|---|
| Laser | Class II red | ||

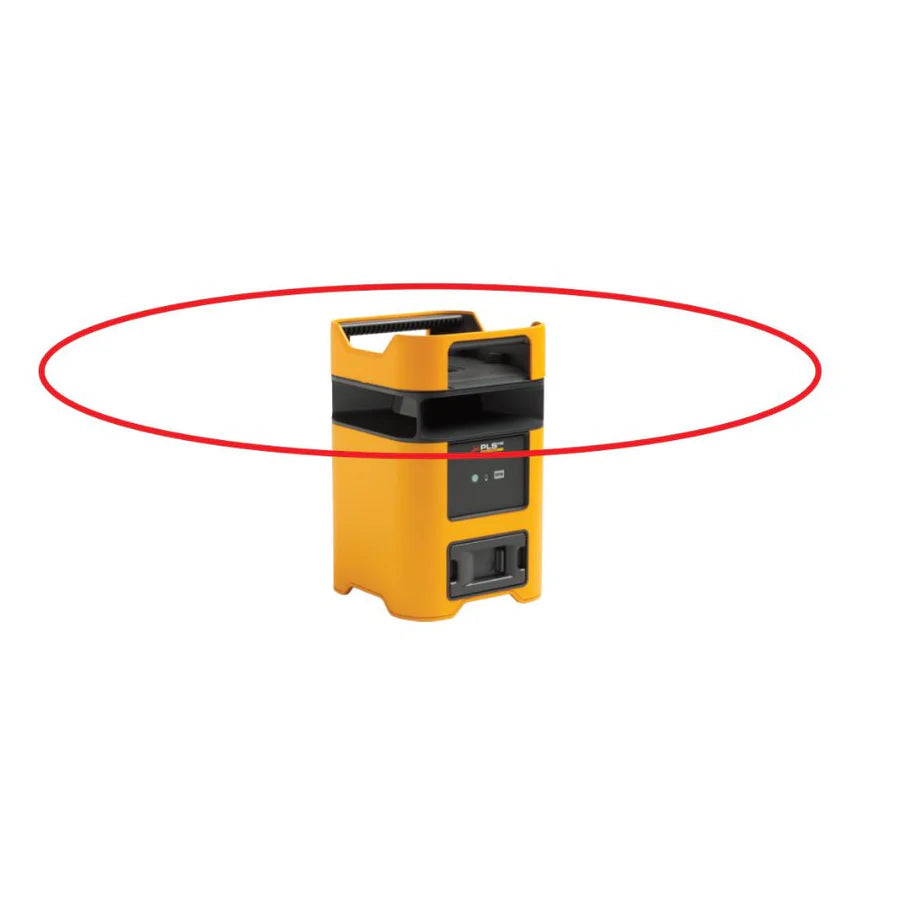

| Laser axis | Horizontal only | ||
| Accuracy | ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) | ||
| Auto-leveling range | ± 5-degrees | ||
| Manual slope range | ± 5-degrees | ||
| Working range | Without XLD laser detector | ≤ 30 m (100 ft) | |
| With XLD laser detector | ≤ 300 m (1000 ft) | ||
| Weight | 2.89 kg (6.4 lb) | ||
| Drop test | 1 m | ||
| IP rating | IP67 | ||
| Operating temperature | -20 °C to 50 °C (-4 °F to 122 °F) | ||
| Battery | 4 x D Alkaline or NiMH rechargeable | ||
| Battery life | > 60 hours | ||
Â
| Accessories | PLS XLD Rotary Laser Detector | ||
|---|---|---|---|
| Working range | 300m (1000 ft) | ||
| Dimensions | 135 mm x 69 mm x 25 mm | ||
| Weight | 0.19 kg (0.42 lbs) | ||
| Drop test | 1 m | ||
| IP rating | IP67 | ||
| Operating temperature | -20 °C to 50 °C (-4 °F to 122 °F) | ||
| Battery | 1 x AA Alkaline | ||
| Battery life | > 50 hours | ||
| Visible spectrum | 450 nm – 800 nm | ||
| Accuracy | Fine | 1 mm (0.05 in) | |
| Medium | 2 mm (0.1 in) | ||
| Coarse | 5 mm (0.2 in) | ||
Â
| Electromagnetic Compatibility (EMC) | |
|---|---|
| International | IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B |
| Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. | |
| Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. | |
| Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object | |
| Korea (KCC) | Class B Equipment (Broadcast communications equipment for home) |
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
