Specifications

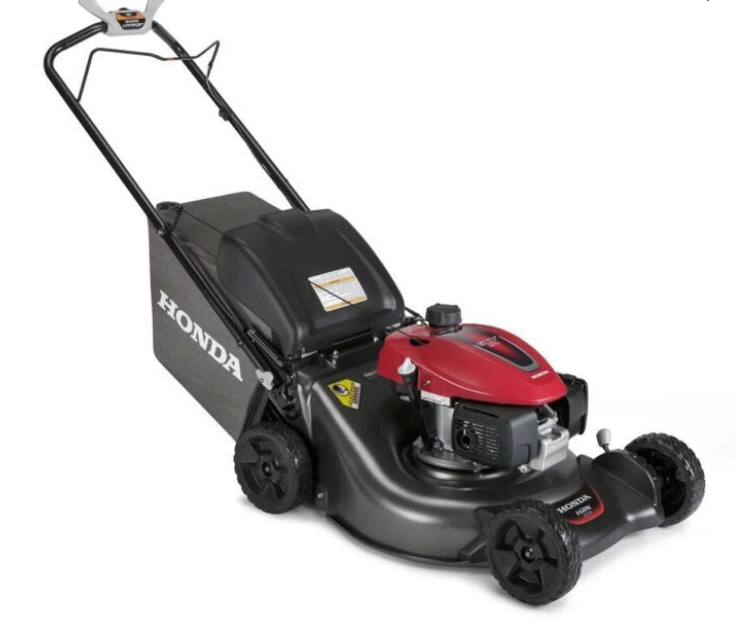

Full model nameHRN216VKA
Carton LabelHRN216VKAA / HRN216VKAB
EngineGCV170
Deck MaterialSteel, 16 ga
Cutting Width21″
Mowing height range1″-4″
Mowing height adjustments7
Drive ControlVariable Postion Smart Drive
TransmissionVariable Speed Fixed Gear Belt Clutch
Ground speed0 to 4.0 mph
StarterRecoil
Choke SystemAutomatic
DriveSlipping Belt
Handle1″ Steel Tube
Handle Height Positions2
Wheels8″ Plastic
Ball Bearing WheelsSintered metal bushing – Rear only
Standard Functions3 in 1: Mulch, Bag, Discharge
BagStandard
Bag capacity (bushels)1.9
Blade(s)Twin blades (MicroCut System®)
Blade ControlFlywheel brake
Side/Rear DischargeRear standard
Dry weight79 lb
Operating Weight82 lb
Residential warranty3 years
Commercial warranty90 days
CA CompliantYes Features Smart Drive Self Propel Intuitive, variable speed control while mowing. Five adjustable positions for user comfort. Variable speed from 0 to 4 mph. Superior Mulching and Bagging The HRN mowers offer superior cut quality whether you’re mulching or bagging, even in tough mowing conditions.
3 in 1 system with Clip Director® Simply slide the Clip Director for mulching, bagging, or discharging versatility. No attachments required.
MicroCut® Twin Blades System Stacked and offset twin blade design provides superior cut quality and smaller clippings for better mulching and bagging. Honda GCV170 Engine Reliable, easy starting power to tackle the toughest mowing conditions.
Honda Auto Choke™ System – easy starting No engine choke required! Just start the mower and go! Easy Fold Quick Release handle for easy height adjustment and storage Easily adjust the handle to 2 comfortable mowing positions, or fold over for storage. Improved Maneuverability 2-Way Ratchet System improves maneuverability and reduces effort to turn in a tight radius, drastically reducing pull-back force Dual-Lever Height Adjustment System User-friendly levers conveniently adjust to 7 cutting heights (1″ to 4″) 8″ High Traction Wheels Excellent traction in a variety of mowing conditions. Large easy off 1.9 bushel grass bag Our large capacity grass bags are balanced so they are easy to empty, saving you time and effort. Flywheel brake safety system Quickly stops the engine when you let go of the flywheel brake lever. Manual fuel shut-off valve The fuel valve can be shut off for transport, storage, or to performance maintenance. 3 year residential warranty You can rest easy, knowing your lawn mower is covered from top to bottom for 3 full years. 90 day commercial warranty
