Name: CUB CADET ULTIMA ZTX5 60 47AKAAA8A10
SKU: P1193S
Availability: InStock

CUB CADET ULTIMA ZTX5 60 47AKAAA8A10

In stock

12 People watching this product now!

STORE PICKUP OR LOCAL DELIVERY ONLY

ZTX5 54

SET UP AND PREP FEES MAY APPLY

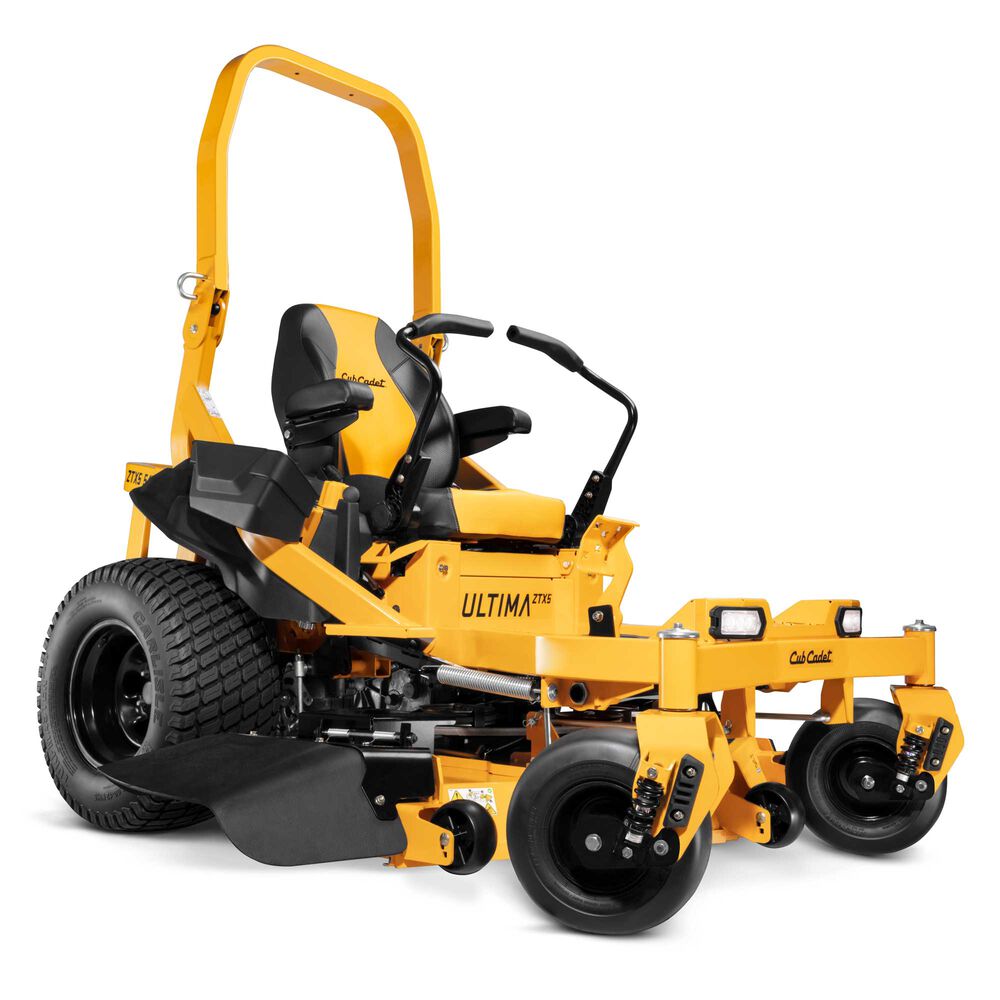

The Cub Cadet® Ultima Series ZTX5 60 60-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.

Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
Equipped with a powerful 24 HP Kawasaki® FS Series V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.

Engine

Engine Brand: Kawasaki®
Engine Model: FS Series
Engine Model Number: 730V
Engine Displacement: 726cc
Engine Output: 24HP
Starter Type: Electric
Fuel Tank Capacity: 5.5 gal. US (20.82 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2.1 qt US ( 2 L)
Lubrication: Fully pressurized
Charging System: 12 amp regulated
Fuel Gauge: Yes
Governor: Mechanical
Choke: Separate Choke
Air Filter: Single element
Oil Filter: Yes
Fuel Delivery: Carburetor

Battery

Battery: 210 CCA
Battery Type: AGM (Absorbent Glass Mat)
Battery Voltage: 12V

Drive System

Transmission: Hydro-Gear ZT 3200
Forward Speed: 8.5 MPH / 13.7 km/h
Reverse Speed: 3.5 MPH / 5.6 km/h
Drive System: Hydrostatic

Cutting Deck

Deck Cutting Width: 60“
Deck Wash: No
Deck Material: 10-gauge steel with 2-gauge reinforcement
Deck Engagement: (PTO) Electric
Deck Construction: Fabricated
Blade(s): Three
Deck Lift: Foot pedal with Dial Adjust
Cutting Height Range: 1″ – 4.75″
Anti-Scalping: Three gauge wheels
Deck Positions: 17

Warranty

Warranty: 4-year 800 hours
Frame Warranty: Lifetime Limited
Deck Shell Warranty: Lifetime limited
Commercial Warranty: 4-year 800 hours

Chassis

Frame: 1.5″ x 3″ tubular steel
Turning Radius: 0°
ROPS: Yes
Rear Tow Hitch: Yes
Corrosion Protection: Yes

Controls

Cruise Control: No
Steering Control: Lap Bars

Comfort

Seat Type: 24″ high back
Armrests: Yes
Seat Adjustment: Lever
Front Caster Suspension: Yes

Wheels

Rear Tires: 23″x 12″-12″
Front Tires: 13″x 6.5″-6″

Additional Specifications

Hour Meter: Yes
Mulch Kit: Available separately
Headlight(s:) Dual-LED
Cup Holder: Yes
Operator Presence System: Yes
Parking Brake: Lap Bar Integrated
Model Number: 47AKAAA8A10

AIR FILTER: KM-11013-0752
PRE-FILTER: KM-11013-7046
OIL FILTER: KM-49065-0721
FUEL FILTER: KM-49019-0031
SPARK PLUG: KM-BPR4ES
DECK BELT:
DRIVE BELT:
BLADE:
MULCH BLADE:
IGNITION KEY: 925-1745A
TRANS FILTER: HG-52114P
TRANS OIL: 72750 KIT
ENGINE OIL: 490-000-C044
