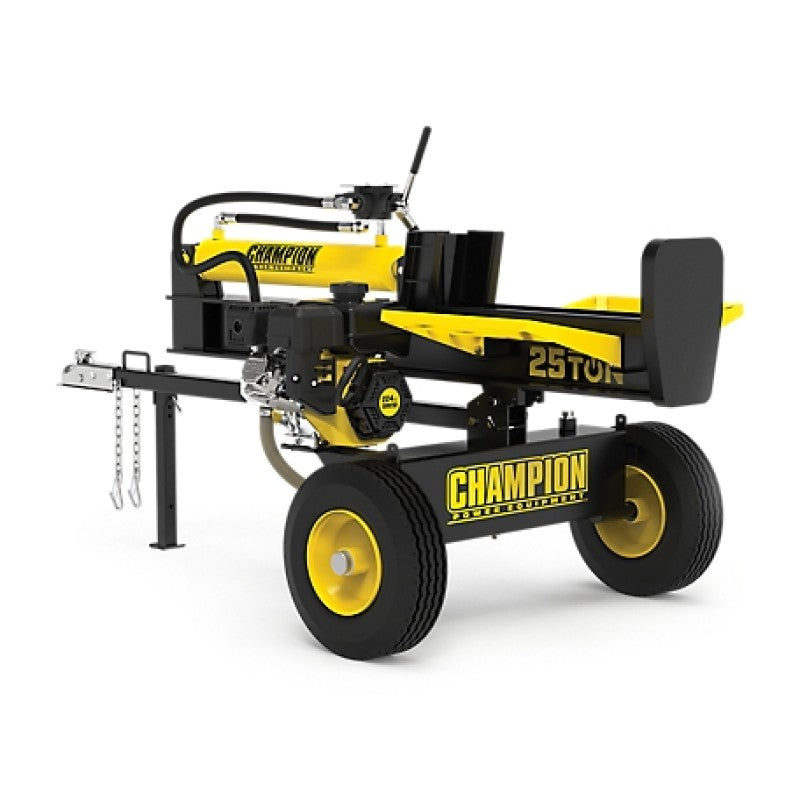

Champion Power Equipment 25 Ton Horizontal/Vertical Full-Beam Gas Log Splitter with Auto Return not only offers relief from the back-breaking work of splitting logs, but also reduces your work time so you can move on to other tasks. With a recoil design, this gas-powered log splitter boasts a powerful Champion engine. Complete with a cast-iron sleeve, this gas log splitter offers a 0.9 gal. fuel tank and a 0.6 qt. oil capacity (recommended 10W-30). Never struggle to lift a large, heavy log onto your log splitter again!
- 25 tons of splitting capacity with a large 224 cc Champion single-cylinder OHV engine
- Log splitter converts from horizontal to vertical in seconds
- 12 sec. cycle time, expanded operator area and dependable auto-return valve capable of 300 cycles per hour
- Towable up to 45 MPH and fits most ATV/UTV towing applications with an extended tongue, 2 in. ball hitch coupler and 16 in. tires
- Log catchers and an oil funnel included with log splitter
- Champion Support includes 2-year limited warranty with free lifetime technical support from dedicated experts
- EPA certified and CARB compliant gas-powered log splitter
- 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity
- Hydraulic oil system of gas log splitter has a 5 gal. oil capacity and operates at 11 GPM
- Compatible with logs up to 24 in. long, weighing up to 100 lb.
- Offers low-oil shutoff for safety
Â
Specifications
| Specification | Description |
|---|---|
| Brand | Champion Power Equipment |
| Country of Origin | Imported |
| Amperage | 0 Amps |
| Cycle Time | 12 sec. |
| DisclaimerARS-CARBCompliant | Yes |
| DisclaimerARS-GasPower | Yes |
| Engine Brand | Champion Power Equipment |
| Engine Displacement | 224cc |
| Features | Auto-return Valve, Log Catchers, Horizontal/Vertical operation, Portable |
| Fuel Tank Capacity | 0.9 gal. |
| Horsepower | 25 HP |
| Hydraulic Capacity | 5 gal. |
| Log Splitter Features | Portable, Automatic Return, Hydraulic |
| Log Splitting Force | 25 ton |
| Log Splitter Maximum Log Diameter Range | 21 – 30 inches |
| Log Splitter Maximum Log Length | 24 in |
| Maximum Log Diameter | 24 in. |
| Maximum Log Length | 24 in. |
| Maximum PSI | 3,900 PSI |
| Engine Brand | Champion Power Equipment |
| Operational Orientation | Horizontal and Vertical |
| Power Type | Gas |
| Primary Material | Steel |
| Product Height | 44.7 in. |
| Product Length | 89.3 in. |
| Product Weight | 429.9 lb. |
| Product Width | 42.9 in. |
| Recommended Oil Type | 10W-30 |
| Splitting Force | 25 Ton |
| Start Type | Recoil |
| Tire Size | 16 in. |
| Torque | 52 lb. -ft. to 66 lb. – ft. |
| Warranty | Champion Support includes 2-year limited warranty with free lifetime technical support from dedicated experts |
