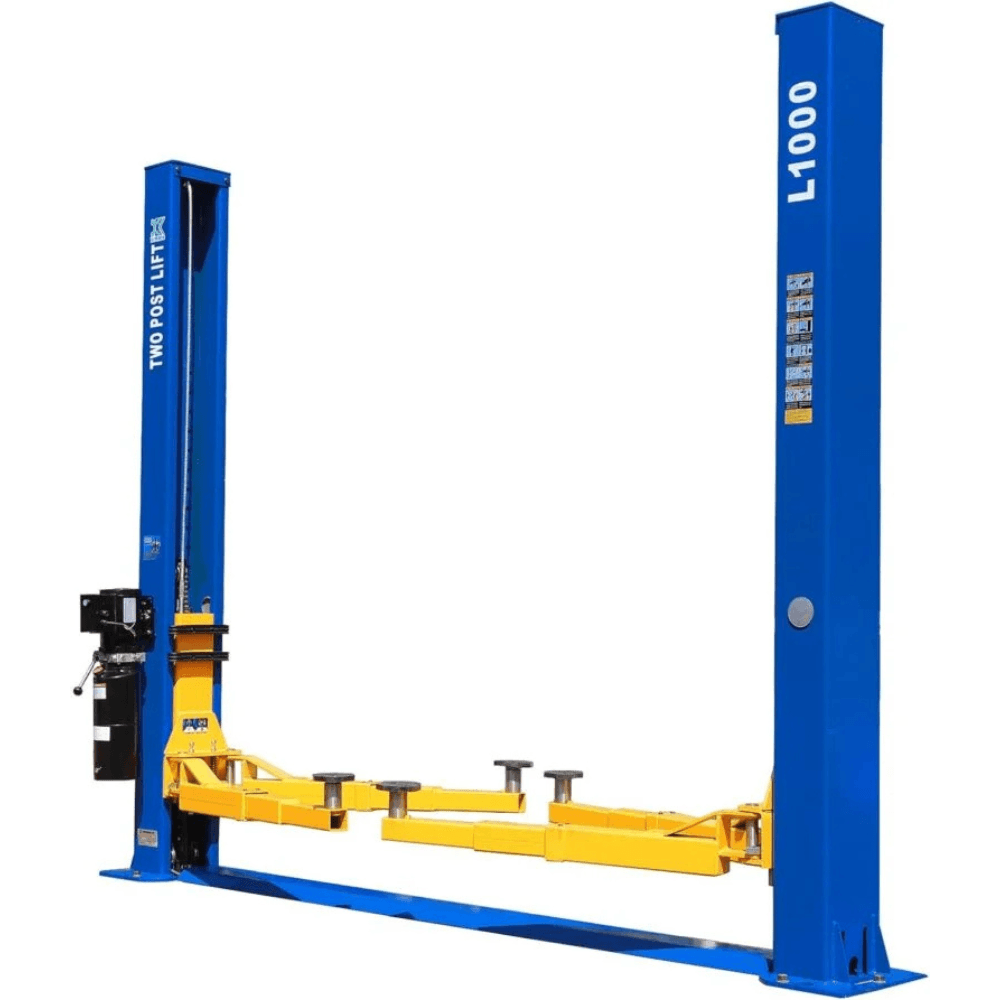

XKUSA L1000 Two-Post Car Lift – 10,000 lb. Capacity
The XKUSA L1000 is a heavy-duty, high-capacity two-post lift, designed for automotive service shops, repair centers, and DIY enthusiasts. With a 10,000 lb. lifting capacity, this lift accommodates a wide range of vehicles, from passenger cars to light trucks and SUVs.
Featuring a durable steel construction, double-point safety lock release, automatic arm restraints, and hydraulic lifting operation, this lift is built for efficiency, reliability, and long-lasting performance. Its open-top design provides unobstructed access to the vehicle’s undercarriage, making maintenance and repairs easier and more convenient.
Key Features & Benefits
- 10,000 lb. Lifting Capacity – Suitable for cars, trucks, and SUVs.
- Two-Post Open-Top Design – Provides full access to the undercarriage for maintenance and repairs.
- Hydraulic Lifting System – Ensures smooth and controlled lifting.
- Double-Point Safety Lock Release – Enhances stability and security during operation.

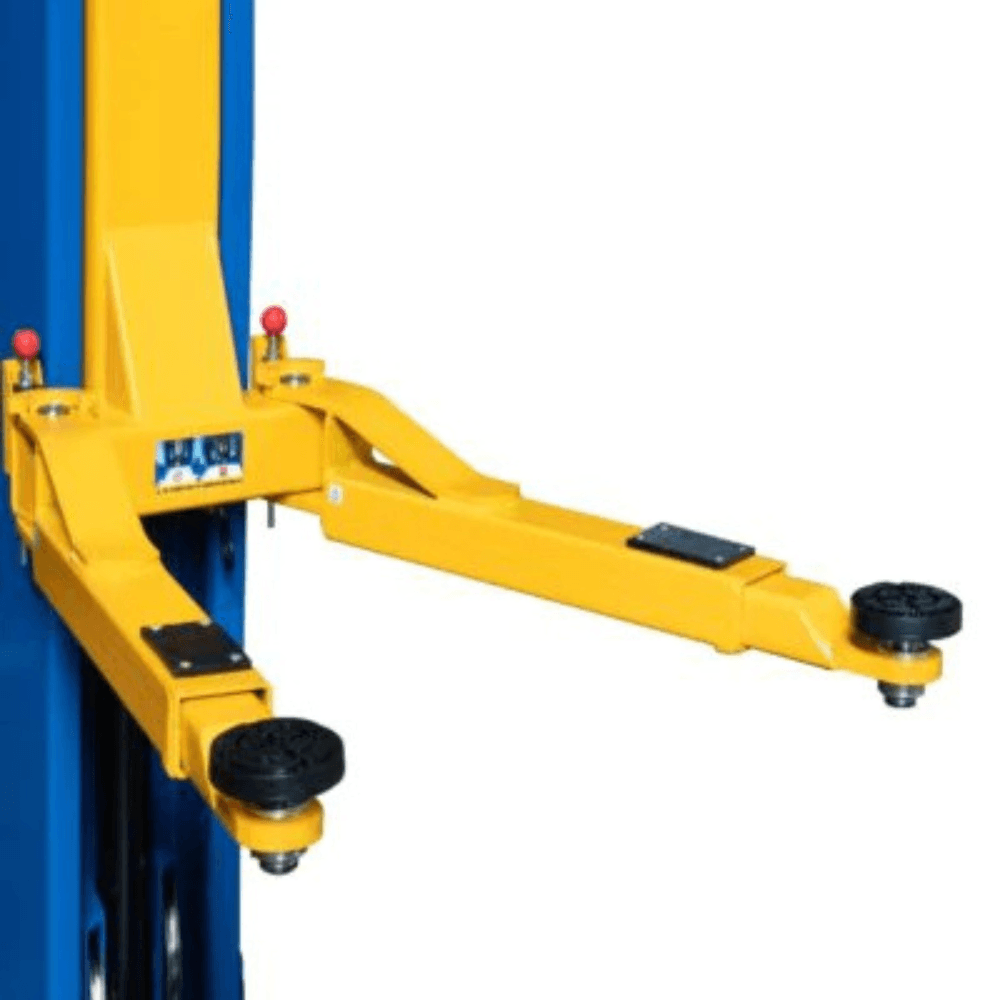

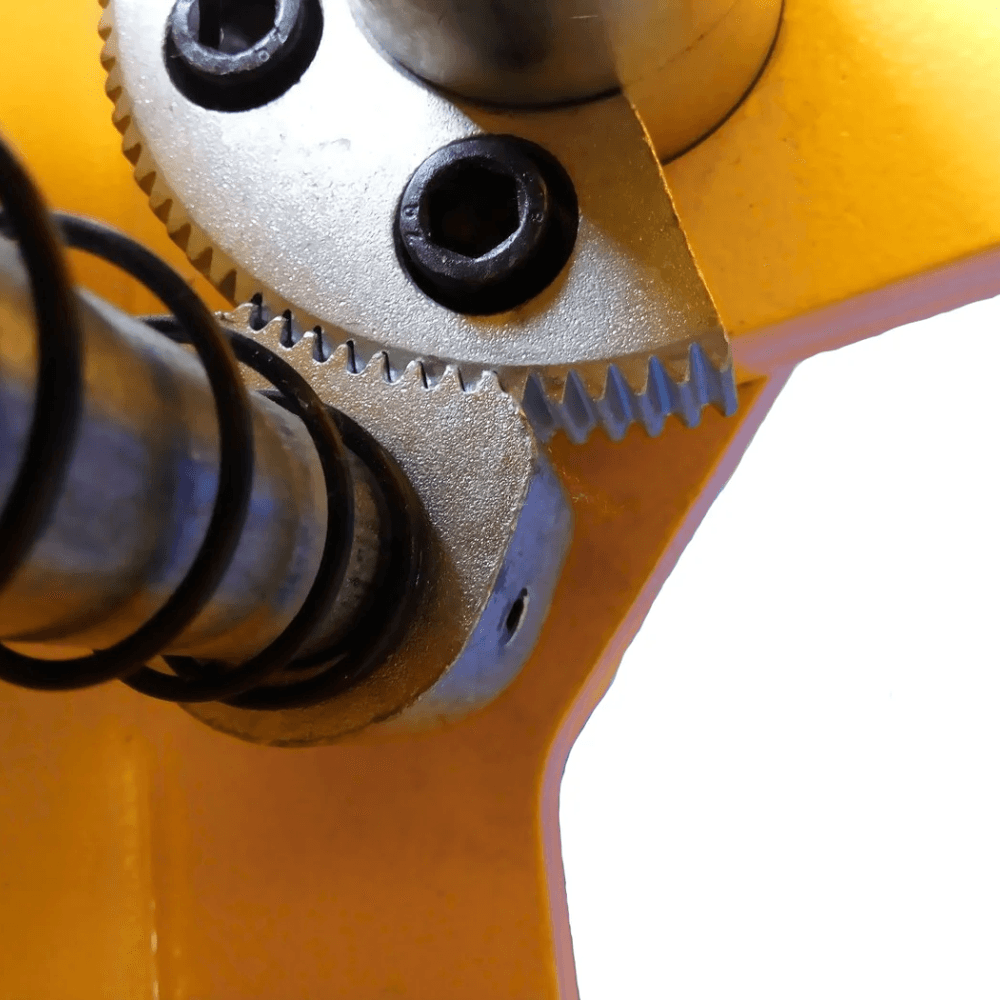

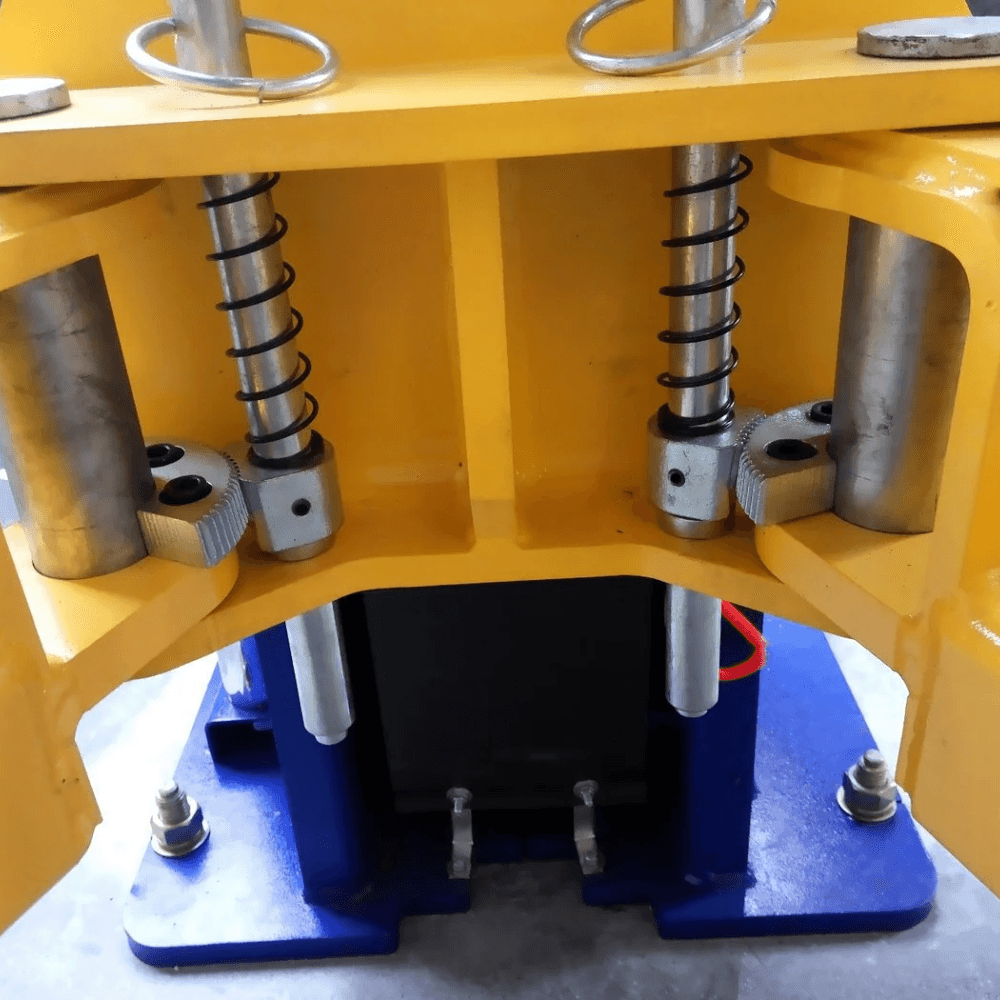

- Automatic Arm Lock Restraints – Keeps lift arms securely positioned.
- Relief Valve Built Into Power Pump – Prevents overloading for increased safety.
- Door Guard Protection Rubber – Protects vehicle doors from scratches and dents.
-
Heavy-Duty Steel Construction –
- 5/16″ diameter cable and 4.56″ pulley reduce stress on synchronization and extend cable life.
- Stiffened 5/8″ thick base plate adds stability.
- Ultra High Molecular Self-Lubricating Nylon Slider – Ensures smooth movement of the carriage.
- Anchor Bolts & Mounting Hardware Included – For secure installation.
-
Easy Control System –
- Lifting operation via “UP” button.
- Manual lowering via lever control.
- Truck Adapter Set Included – Expands vehicle compatibility.
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 10,000 lbs. |
| Overall Height | 110-1/4″ |
| Overall Width | 134-21/32″ |
| Column Width | 10.62″ |
| Base Width | 18.89″ |
| Column Steel Thickness | 3/16″ |
| Carriage Steel Thickness | 15/64″ |
| Arm Steel Thickness | 15/64″ |
| Front Arm Reach | 30.7″ to 48″ |
| Rear Arm Reach | 30.7″ to 48″ |
| Minimum Pad Height | 3-7/8″ |
| Maximum Lift Height | 78-7/8″ |
| Drive-Thru Width Clearance | 99-19/32″ |
| Time to Full Rise | 20-60 sec |
| Shipping Weight | 1,350 lbs. |
| Voltage Requirement | 220V or 110V |
| Material | Heavy-Duty Steel |
| Warranty | Yes |
Why Choose the XKUSA L1000 Two-Post Lift?
The XKUSA L1000 is a versatile and heavy-duty two-post car lift, ideal for professional mechanics, auto repair shops, and at-home automotive enthusiasts. Its high lifting capacity, durable steel construction, and advanced safety features ensure reliable performance and maximum efficiency.
For a dependable, user-friendly, and high-performance two-post lift, the XKUSA L1000 is the perfect choice!
