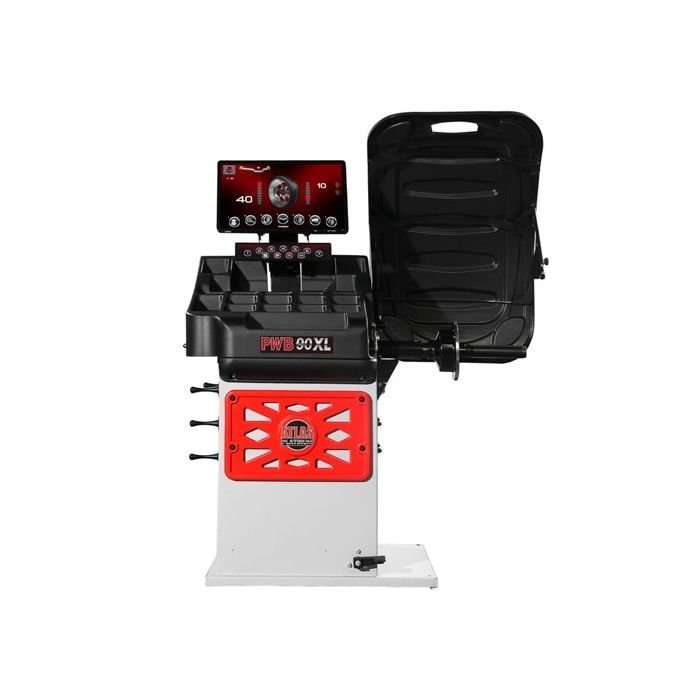

Atlas Platinum PWB90XL 3D Video Wheel Balancer with Laser Line
The PWB90XL is a high performance wheel balancer with high-resolution monitor display, which not only makes it extremely user-friendly but will also impress your customers!
This machine offers Super Automatic 3D Data Entry via a single data entry gauge for offset and diameter, and touchless sonar for rim width (no old-fashioned measuring arm). Using the weight placement arm, the user can choose the most convenient location to put the weights, and a laser will guide the operator back to the exact location after the spin cycle, eliminating any possibility for human error and ensuring first time zero/zero results. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows the operator to change the weight application position from 12 o’clock to 6 o’clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB50 via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient.
Make no mistake, the PWB90XL is a real top of the line wheel balancer, competing with those big name brands seen as the benchmark for premium quality. This model guarantees speed, accuracy, and a long life by combining Italian engineering and components with the Factory Direct Value that ATLAS is known for around the World.
Features and Specs
Features
- Platinum 3D Video Motorized Spin Balancer
- Italian Engineering and Components
- High-Resolution Video Monitor Display
- Super Automatic 3D Data Entry (touchless sonar to measure rim width)
- Laser Line to guide weight placement
- LED light illuminates wheel interior
- Static and dynamic balancing modes.
- Optimatch, FES (Split), OPF (Opposite Position) Functions
- Special ALU-S and other ALU Programs
- NWN (no wheel need) System
- Self-Diagnosing and Self-calibrating
- USB hub for firmware update through PC/Notebook
- Exceptional stability in reading the unbalance between planes
- Display in grams or ounces, and in mm or inches
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
Specifications
- Max Wheel Diameter: 43″ (1100mm)
- Rim Diameter: 10″ – 30″
- Rim Width: 1 ½” – 20″
- Shaft Size: 40mm
- Max. Wheel Weight: 165 lbs (75 kg)
- Balancing Speed: 130 R.P.M.
- Power Supply: 110V 1Ph
- Accuracy: 1 g
- Cycle Time: 7 seconds
- Shipping Weight: 290 lbs
Warranty: 1-Year Limited
