Atlas RJ-6000 Air/Hydraulic Rolling Jack – 6,000 lb. Capacity

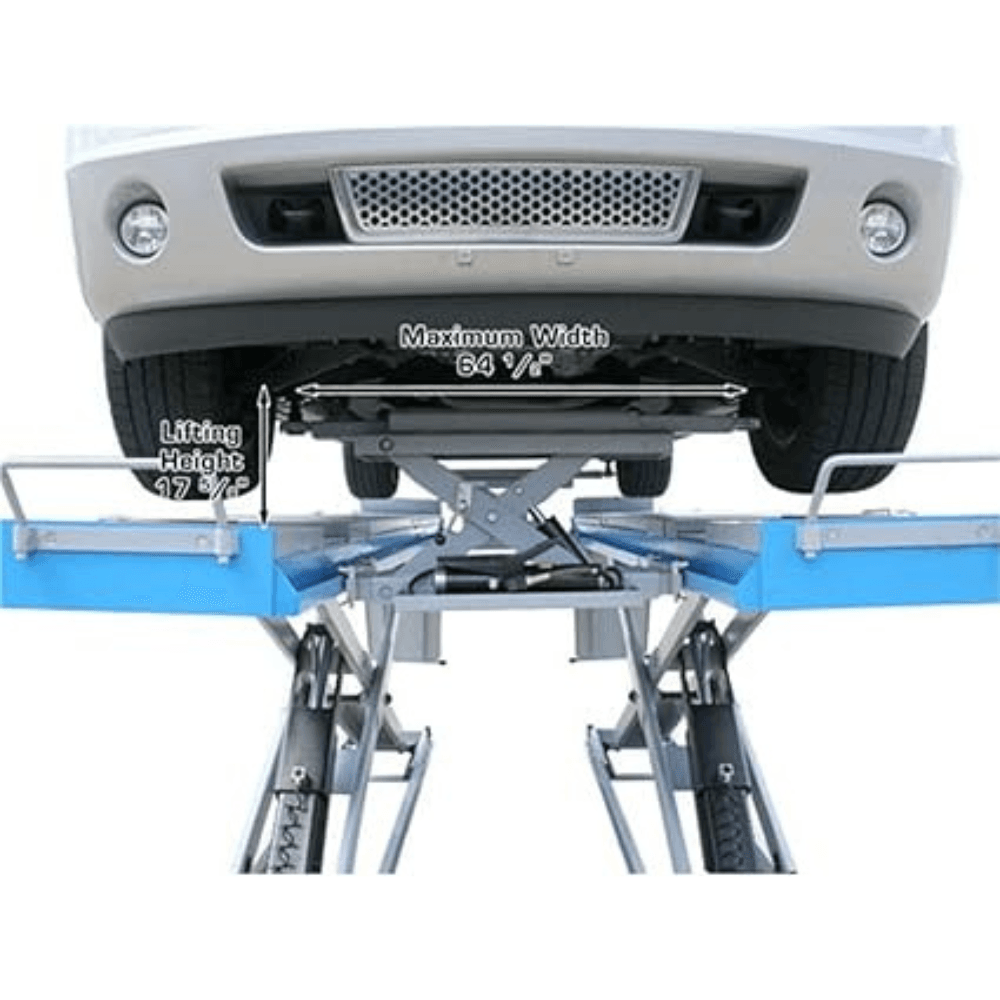

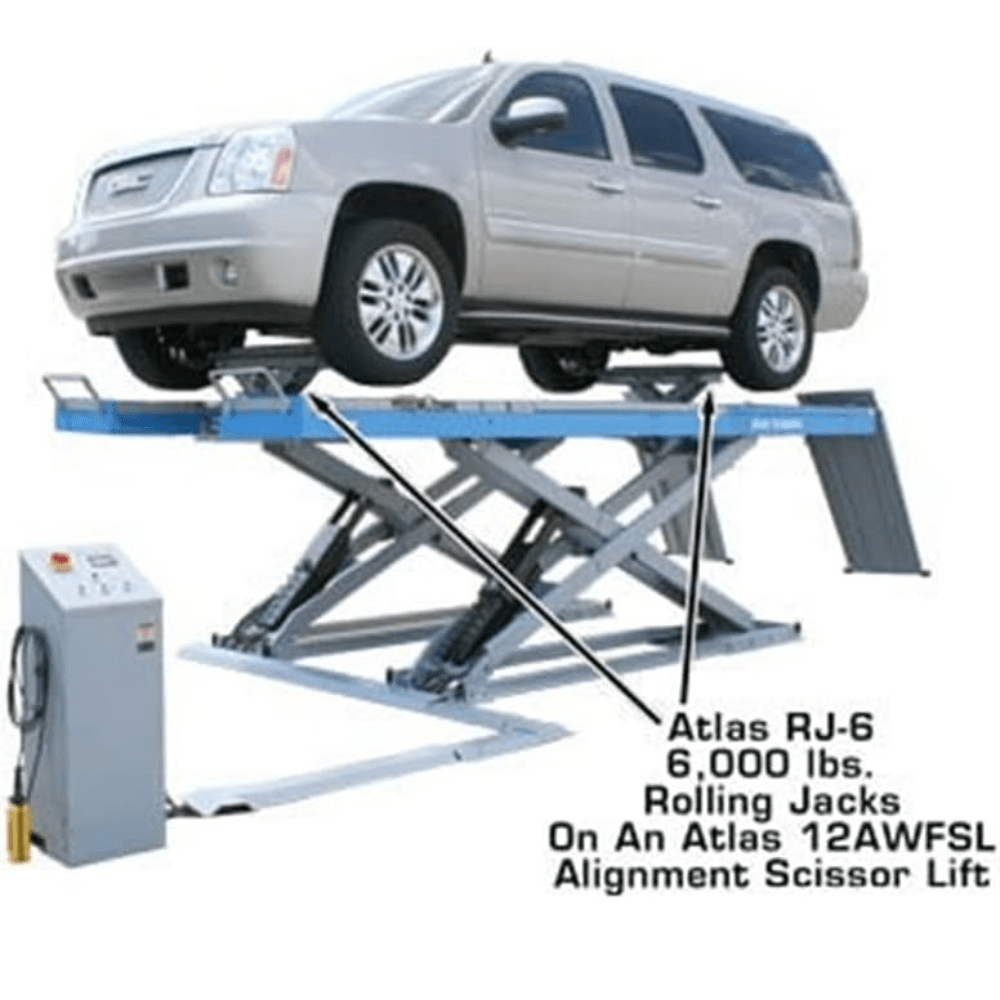

The Atlas RJ-6000 Air/Hydraulic Rolling Jack is a heavy-duty, commercial-grade rolling jack designed to lift and support up to 6,000 lbs. It is ideal for four-post above-ground lifts, allowing operators to raise the front or rear portion of a vehicle for wheel, brake, and suspension service.

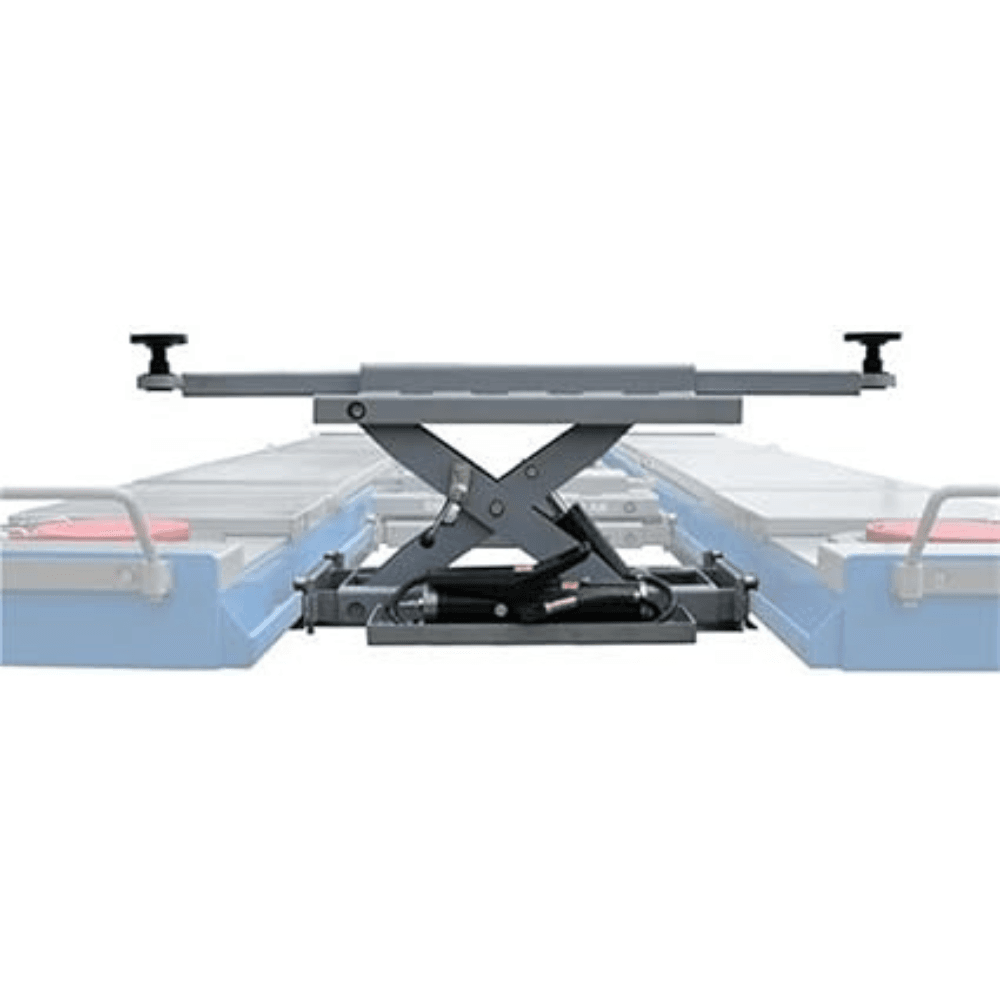

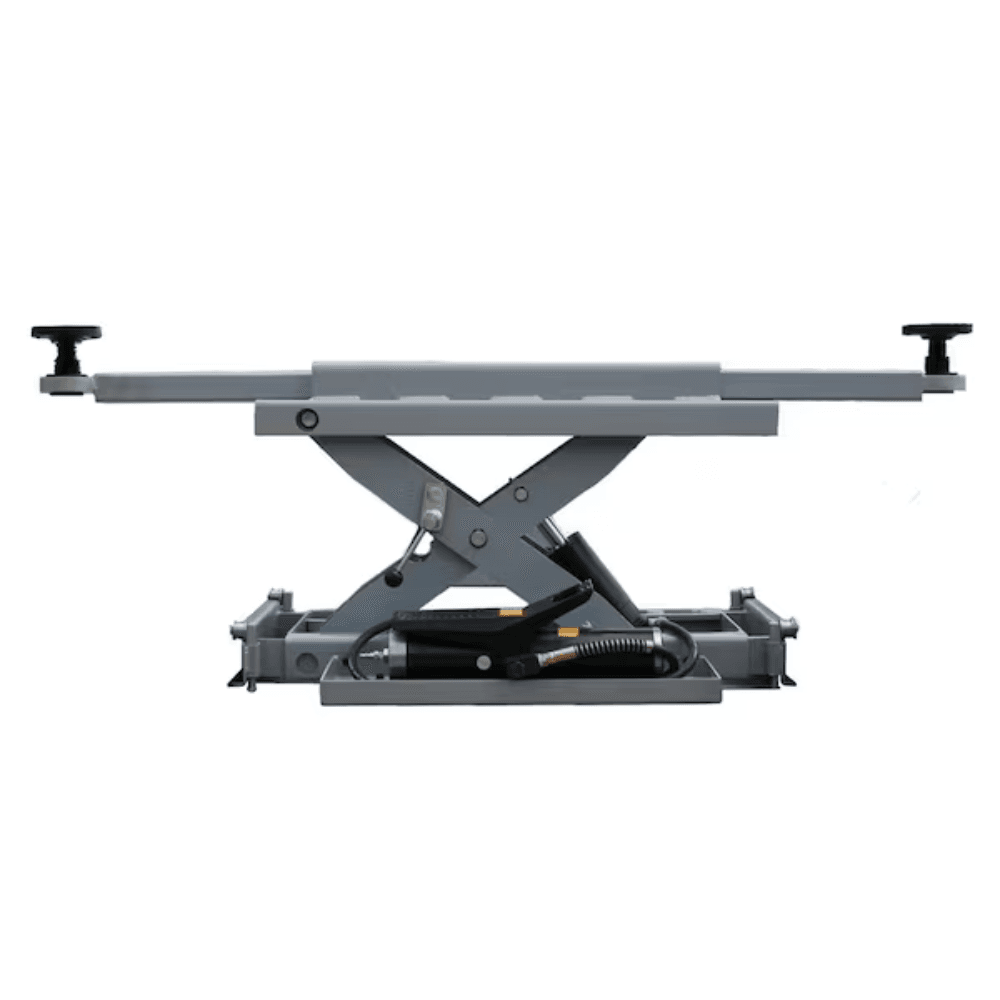

Equipped with telescoping arms, expandable supports, and a scissor mechanism, the RJ-6000 ensures level lifting and easy positioning under various vehicle types. The smooth-rolling system allows the jack to glide effortlessly along the runways of most four-post lifts, making it a must-have tool for commercial auto shops.
The included peg-style truck adapters increase lifting height, making the RJ-6000 suitable for both standard passenger cars and larger trucks.
Key Features & Benefits
- 6,000 lb. Lifting Capacity – Perfect for cars, SUVs, light trucks, and heavy-duty vehicles.
- Air/Hydraulic Operation – Requires compressed air (70-95 PSI) for smooth lifting.
- Scissor Mechanism – Provides level and secure lifting.
- Expandable Supports – Adjusts to fit different four-post lift brands.
- Smooth Rolling Action – Features heavy steel wheels for easy movement.
-
Safety Lock Positions –
- First Locking Position: 7”
- Second Locking Position: 10.5”
- Locks act as jack stands for secure vehicle suspension.
- Compact, Low-Profile Design – Easy to store when not in use.
- Durable Powder-Coated Finish – Protects against wear and corrosion.
- Adapters Included – Peg-style truck adapters for increased lifting height.
- RJ-6000 Color May Vary (Blue or Black).
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Maximum Lifting Capacity | 6,000 lbs. |
| Maximum Width | 55 ¾” |
| Minimum Width | 35″ |
| Distance Between Runway Capability | 32″ – 52″ |
| First Locking Position | 7″ |
| Second Locking Position | 10 1/2″ |
| Maximum Lifting Height (With Adapters) | 21 3/4″ |
| Minimum Lifting Height | 8 1/4″ |
| Lifting Pad Height | 1 1/4″ |
| Short Adapter Height | 1 1/2″ |
| Tall Adapter Height | 3″ |
| Recommended Operating Pressure | 70-95 PSI |
| Shipping Weight | 350 lbs. |
Why Choose the Atlas RJ-6000 Air/Hydraulic Rolling Jack?
The Atlas RJ-6000 is the perfect addition to any four-post lift, offering heavy-duty lifting power, superior maneuverability, and added safety features. Whether you need to perform wheel, brake, or suspension work, this rolling jack provides the stability and flexibility needed for professional-grade vehicle service.
For auto repair shops and professionals looking for a reliable, high-capacity rolling jack, the Atlas RJ-6000 Air/Hydraulic Rolling Jack is a top choice!
