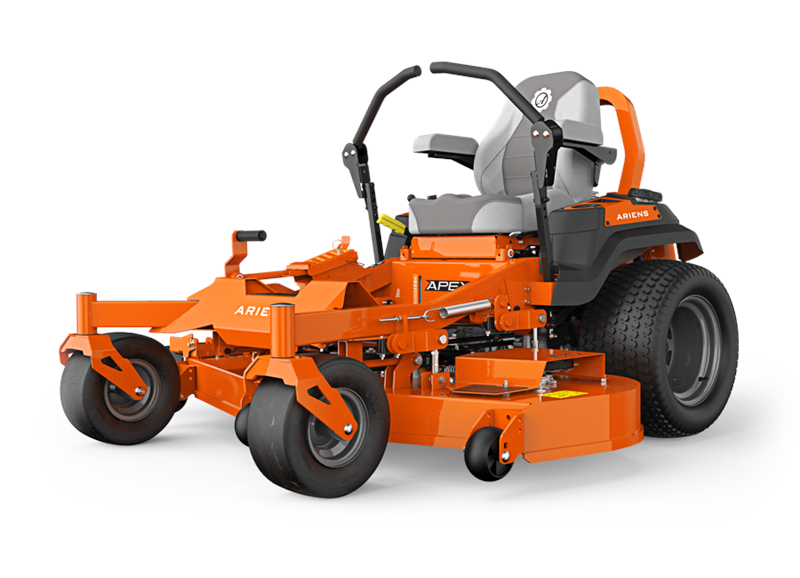

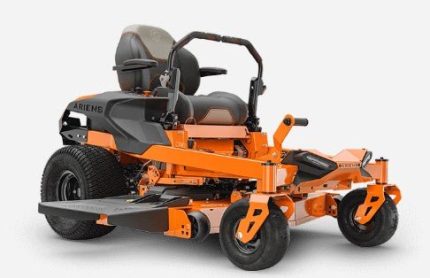

Ariens 991163 Apex 60″ Fab Deck 24 HP Kawasaki Zero Turn Mower
Features:
- Featuring our most powerful engine, the 24 hp/726 cc Kawasaki® FR730
- 60 fabricated deck is 5½ deep and made of 10-gauge steel
- Fully tubular steel frame, Self-adjusting belt technology, High-Back Padded Seat and armrests, Foot-operated deck lift
Specs:
TITLE: APEX 60
ENGINE: Kawasaki® FR730
DISPLACEMENT (CC): 726 cc
DRIVE SYSTEM: Hydro-Gear® ZT-3100 Transaxles
FUEL CAPACITY: 5.1 Gallon (19.3L)
GROUND SPEED (APPROXIMATE MPH) (FWD/REV): 8 mph/4 mph
DECK MATERIAL: 10 ga
DECK CONSTRUCTION: Fabricated
NUMBER OF SPINDLES: 3
BLADE TIP SPEED (FPM): 18,000
SPINDLE MATERIAL: Aluminum
SPINDLE SHAFT: Steel
DECK DRIVE: Belt
DECK ENGAGEMENT: Electric Ogura®
DECK LIFT SYSTEM: Foot Operated
CUTTING WIDTH: 60 in
CUTTING HEIGHTS: 1.5-5 in
CUTTING POSITIONS: 15
WHEELS (FRONT): 13 x 6.5 in – 6 in
WHEELS (REAR): 22 x 12 in – 12 in
SEAT: High Back Premium w/ Padded Armrests
HOUR METER: Standard
WARRANTY (MACHINE): 4 year or 500 hours
WARRANTY (DECK & FRAME): 5 Year Limited
WEIGHT: 870 lbs
LENGTH: 79 in
WIDTH: 75 in
HEIGHT: 49 in
FRONT AXLE: Fixed
Accessories:
| 891008 | 2 Bucket Powered Bagger – Fits Apex models (Requires bagger mount kit and lower rops bagger mount kit) |
| 791078 | Lower Rops Bagger Mount (Required for installation of bagger on APEX units without a ROPS) |
| 791066 | 60″ Bagger Mount Kit – Fits Apex models with 60 deck |
| 791059 | 60″ Grass Mulching Kit – Fits Apex models with 60 deck |
| 792105 | 60″ Operator Controlled Chute Baffle – Fits 60 Apex models |
| 792134 | 60″ Discharge Cover Kit -Fits Apex models with 60 deck |
