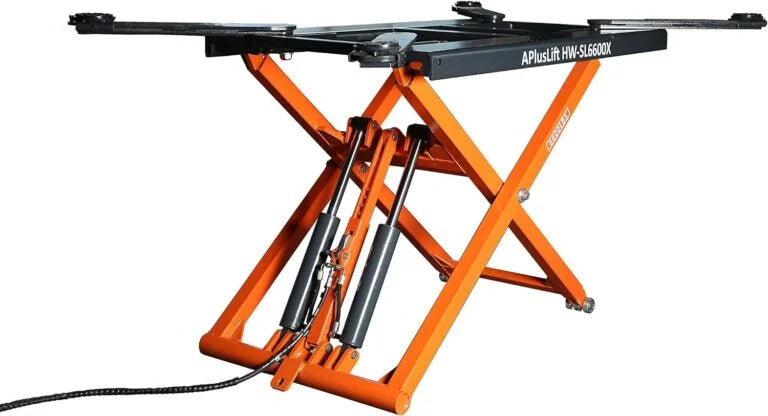

APlusLift HW-SL6600X portable mid-rise scissor lift (auto hoist) is one of the most affordable scissor lift with 6,600 LB Heavy Duty Design. HW-SL6600X is the ideal scissor lift for low ceiling or adding a bay for seasonal increases in business. It provides a good working height for tire service, detailing, brakes and body work for the shop. Quick set up time and an extended raised height. It is built with quality materials and good workmanship. EVERY PART IS FULLY TESTED. The car lift is comparable to Known High-End Brands. All warranty and repair parts are available.
Specifications and Features
- Industry Leading 3 Year (36 Months) Warranty for All Parts (A $499 Value!)
- Solid Steel Construction
- Driving by Dual 3 1/4″ hydraulic cylinders
- Durable orange and black powder coated finish
- Adjustable height adapters
- Rubber coated lifting arms
- Manual Release Safety Lock
- Power Unit with portable dolly
- Maximum Lifting Height with Adjustable Screw Pads 8″
- Maximum Length 88 9/16″
- Minimum Width 39 1/2″
- Maximum Width 78 3/4″
- Minimum (Collapsed) Height 6 1/8″
- Maximum Height 47″ without Adjustable Screw Pads
- Maximum Height 55″ with Adjustable Screw Pads
- One Set of 2 3/4″ Tall Truck Adapters Included
- Locking Heights:
- Position 1: 27 1/4″
- Position 2: 32 1/2″
- Position 3: 37″
- Position 4: 41 1/2″
- Position 5: 45 1/2″
- Control System:
- Lifting operation by pressing “UP” button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading
- Lifting Capacity: 6,600 LB
- Motor: 110V Single Phase 2HP (recommend a 30A breaker)
- Oil Volume: 1.6 US gal.
- Time to full rise: 45 sec
- Shipping Weight: 1,200LB
- Shipping package size: 88″L x 45″W x 10″H (lift) and 39″L x 15″W x 15″H (power unit)
- Installation Manual
