AFF 3167 Floor Jack Cross Beam Adapter
4,400 lbs. Capacity Adjustable To 38″ Wide

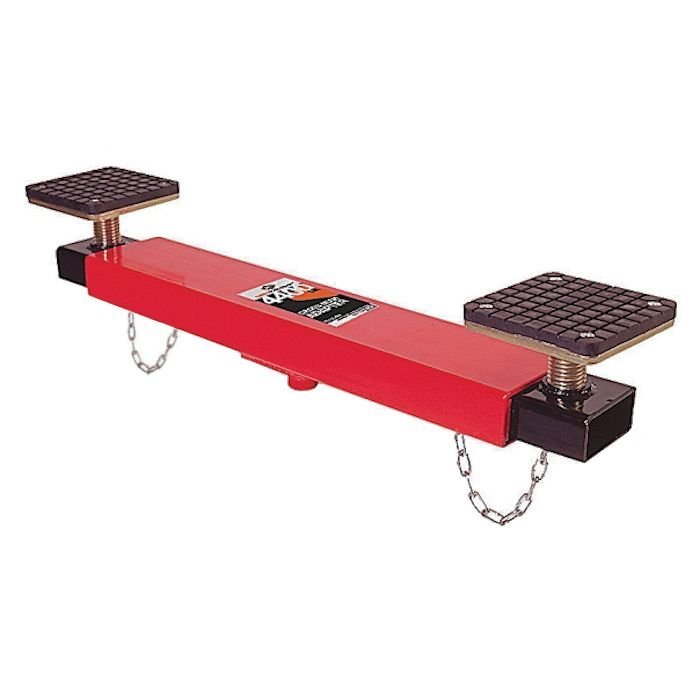

The American Forge & Foundry 3167 Floor Jack Cross Beam Adapter is for use with any AFF or Viking floor jack with a 1-1/8″ diameter saddle stud and will facilitate lifting the entire front or rear of a vehicle with a floor jack. This floor jack cross beam adapter will support 4,400 lbs. and adjusts to a maximum of 38″. Saddle pads are 4-3/4″ square and rubber coated for added vehicle protection during lifts. The standard AFF (1) Year Warranty applies with over 300 service centers nationwide.
Floor jacks traditionally only raise one wheel of the car at a time. What if you had an accessory for your floor jack that would allow you to raise one half of the vehicle (or 2 wheels) at the same time? Wouldn’t that be convenient? Of course it would. That’s where this AFF 3167 Floor Jack Cross Beam Adapter comes in. It will handle most typical passenger cars with a 4,400 lb. capacity and telescopes out all the way to a 38″ width. So as long as the frame jack contact points can be found somewhere within that range, you’re good. The pads that make contact with the vehicle’s frame are 4.75″ square, and have a rubber saddle pad to protect the underside from being marred.
Established in 1963, American Forge & Foundry has built a long-standing tradition of providing premium quality products, exceptional service and outstanding value. Available through our network of distributor partners, our products can be found in heavy duty and automotive repair shops, military sectors, agriculture, and other demanding industries. From our extensive inventory of parts to the hundreds of service centers available nationwide our experienced team is committed to ensuring that the AFF brand stands for durability, safety, and customer care.
In 2017, American Forge & Foundry joined SureWerx USA. Co-headquartered in Elgin, Illinois USA and Vancouver, British Columbia Canada, SureWerx is a leading supplier of safety products, tools, and equipment servicing professional markets including safety, industrial, construction, heavy duty, and the automotive aftermarket. SureWerx provides one of the widest ranges of industry leading products under many exceptional corporate brands.
American Forge & Foundry Inc. has made quite a name for themselves over the years. Formed in 1963, they have grown into a specialist in providing top quality auto shop equipment while maintaining very competitive prices. AFF has over 300 service centers throughout the nation and maintains a complete supply of replacement parts that ensure that your product is not just another throw-away like so many others.
Features and Specs
Â
Features
- 4,400 lbs. Capacity
- For Use With Any AFF Or Viking Floor Jacks With 1-1/8″ Diameter Saddle Stud
- Lift The Entire Front Or Rear Of A Vehicle
- Two Telescopic 4.75″ x 4.75″ Saddle Pads Easily Adjust To Maximum 38″ Width
- Rubber Saddle Pads For Added Vehicle Protection
Specifications
- Capacity: 4,400 lbs.
- Saddle Pad Dimensions: 4.75″ x 4.75″
- Maximum Width: 38″
- Dimensions: 25.5″ L x 6.5″ W x 5″ H
- Shipping Weight: 31 lbs.
- Warranty: (1) Year Limited
American Forge & Foundry Limited Warranty Statement
American Forge & Foundry, Inc. WARRANTS, to the final purchaser, all equipment distributed by American Forge & Foundry, Inc. to be entirely free from operating defects in material and workmanship for a period of one year. Calibration on Torque Wrenches is warranted for 90 days from point of purchase. If a jack or related equipment is determined to be defective during the period, AFF, at its option, will repair or replace without charge provided that the equipment is shipped, transportation charges prepaid with proof of purchase to American Forge & Foundry, Inc. or to an authorized Field Service Depot designated by American Forge & Foundry, Inc.
​This warranty does not apply to products damaged by accident, overload, or abuse, nor does it apply to any product which has been altered or used with special attachments other than those expressly recommended by American Forge & Foundry, Inc.
There are no other warranties of any sort, express or implied, and Seller specifically disclaims any warranty of merchant-ability or of fitness for any particular purpose.
The Seller’s sole obligation, which shall represent the Buyer’s sole and exclusive remedy, shall be to repair or at the Seller’s option to replace any product or part determined to be defective as aforesaid. In no event shall the Seller be liable for any special, direct, indirect, incidental, consequential or other damages of a similar nature, including, without limitation, loss of profits or of production time, or loss of expenses of any nature, incurred by the Buyer or any Third party.
